Grandstream UCM6200 (Real Time). SMDR/CDR data format and connection settings

This data is being extracted with help of the "Advanced PBX Data Logger" software only. It may not applicable for other software titles.

PBX Settings

Note: CDR Real-Time Output feature added starting from firmware 1.0.17.16 on UCM62xx/UCM6510 and starting from firmware 1.0.5.4 on UCM630xA.

You can change the PBX setting using the web interface.
1. Open your favorite browser.
2. Navigate to the http://192.168.0.10/ (replace the IP address with the address of your PBX)
3. Login as Administrator.
4. From the left side menu:
4.1 Select "CDR → API Configuration".
4.2 Or in newer versions "Value-added features → API Configuration".

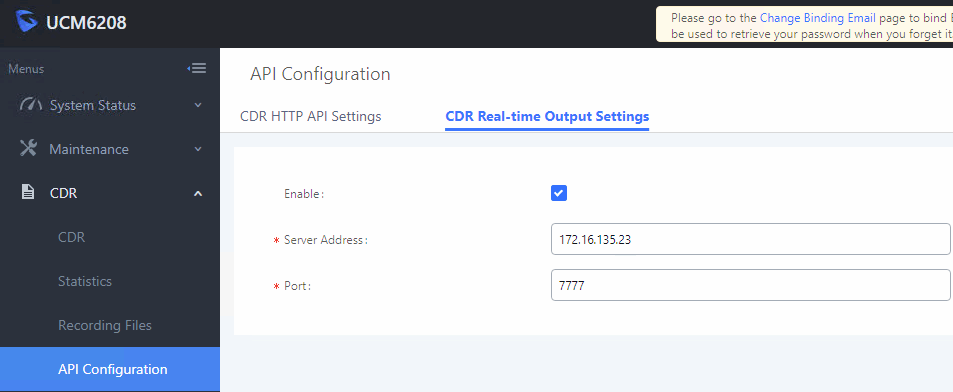

5. Switch to the "Real Time /CDR Real-time output settings" tab.
6. Specify the IP address/port of the computer with Advanced PBX Data Logger (for example: 172.16.135.23 and 7777). You need the static IP address on this computer.

Configuring Advanced PBX Data Logger as a TCP server

Advanced PBX Data Logger should be configured to the TCP server mode and listen on 0.0.0.0:7777 (see below). The IP address 0.0.0.0 allows receiving data from all network connections on your computer. The port number should match the value from the SMDR settings in your Grandstream UCM6200.

1. Add a new configuration with the TCP data source (if you didn't it before).

TCP/IP Data Interface

2. Configure the TCP settings as shown below.

7777

Selecting the correct parser for Grandstream UCM6200 (Real Time)

Grandstream UCM6200 (Real Time)

Data items

Description	Data type	Column name
Record ID	string	FLAG1
Account code	string	ACC
Dialed phone	string	DIALED_PHONE
Caller phone	string	CALLER_PHONE
Call type	string	CALL_TYPE
Source channel	string	SRC_CH
Destination channel	string	DEST_CH
Direction	string	DIRECTION
Caller name	string	FLAG2
Charged user ID	string	EXT
Call time	datetime	CALL_TIME
Call duration (s)	integer	CALL_DURATION_S
Call duration	datetime	CALL_DURATION
Ring	datetime	RING
Disposition	string	FLAG3
Unique ID	string	FLAG4
User field	string	FLAG5
Service	string	FLAG6
Action type	string	FLAG7
