Siemens Hipath-37xx (Delimited by Pipe). SMDR/CDR data format and connection settings

This data is being extracted with help of the "Advanced PBX Data Logger" software only. It may not applicable for other software titles.

General

This information is applicable for Siemens Hipath 3000, Siemens Hipath 3350, Siemens Hipath 3500 and Siemens Hipath 3750.

RS232 (V.24). Connection parameters

Default parameters for serial communication: 9600-8-N-1 with hardware flow control.

Configure your PBX using the programming software, like HiPath 3000 Manager.

Go to: System status – Call charges – Output format

V.24 settings (compressed)

Pinout and wiring

PC (9 pin)	PBX (9 pin)
1	1
2	3
3	2
4	6
5	5
6	4
7	8
8	7
9	9

LAN. Connection parameters

Configure your PBX using the programming software, like HiPath 3000 Manager.

Go to: System status – Call charges – Output format (fig. 2)

SMDR. Output Format

Output format: LAN-TCP-Client
MRAT: none

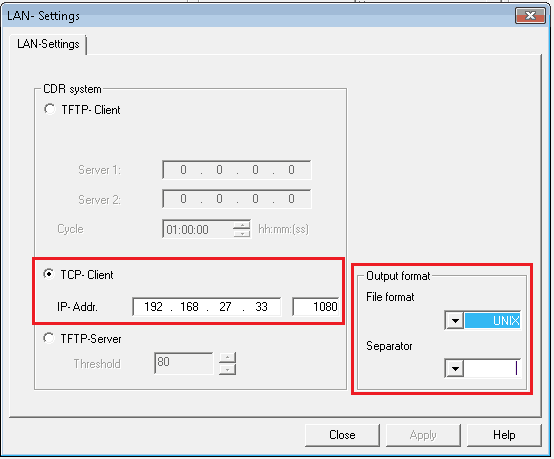

Change LAN settings (fig. 3):
IP address: 192.168.1.1 (IP address of your computer with Advanced PBX Data Logger)
TCP port: 1080 (recommended)

LAN settings (compressed, pipe character)

Advanced PBX Data Logger

Configure our software to the TCP server mode (fig. 4). Please, note that you should specify the same IP address and port as in the LAN settings. 0.0.0.0 means that the program will listen on all available network interfaces.

TCP Server Mode

Date format

Verify that the date format in the parser and in your PBX are identical.

Parser for your PBX

Date Format

Data items

Description	Data type	Column name
Call time	datetime	CALL_TIME
CO	string	TRUNK
Account	string	EXT
Ring duration	datetime	RING
Call duration	datetime	CALL_DURATION
Call duration (s)	integer	CALL_DURATION_S
Cost	float	COST
Call type	string	CALL_TYPE
Direction	string	DIRECTION
Phone	string	DIALED_PHONE
Caller phone	string	CALLER_PHONE
Flag 3	string	FLAG3
DNIS	string	DNIS
Route table	string	FLAG2
