LG Ericsson IPECS MFIM50A. SMDR/CDR data format and connection settings


This data is being extracted with help of the "Advanced PBX Data Logger" software only. It may not applicable for other software titles.

Configuring the PBX

Note: You need to assign a static IP address to the PBX (for example, 192.168.1.220).

1. Open a web browser on your computer.
2. Enter the IP address and port of the IPECS [for example, 192.168.1.220:53000] in the address bar of your browser and press the "Enter" key.
3. You will get the administration console.
4. Log in as "System Administrator."

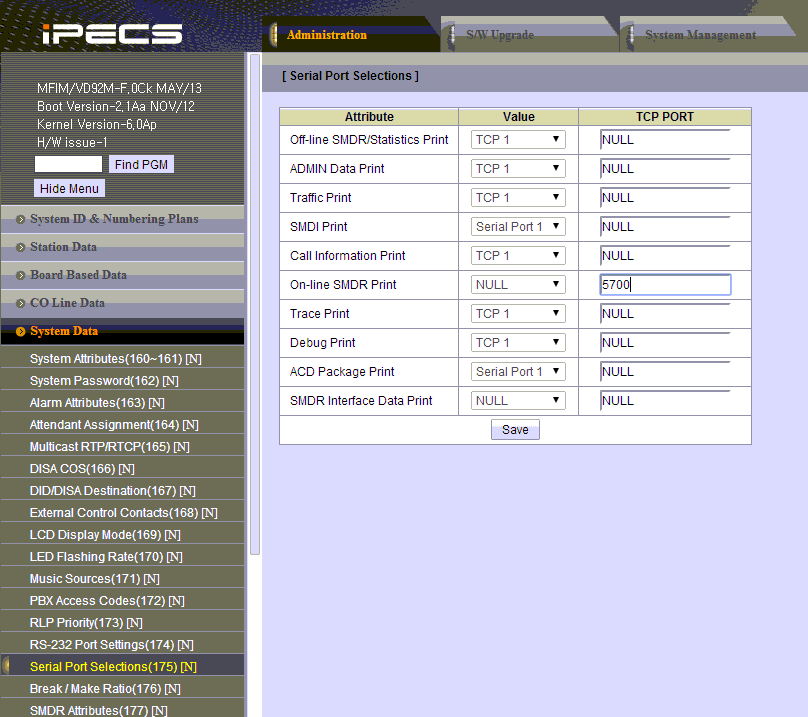

5. Click on "System data → Serial Port Selections" as shown below: On-line SMDR print - NULL - 5700
6. To enable "Caller ID" information in the call records produced by your LG iPECS, you need to set the "CLI Print To Serial" to "ON" on the "ISDN Line Data → ISDN attributes (200)" page.

SMDR port

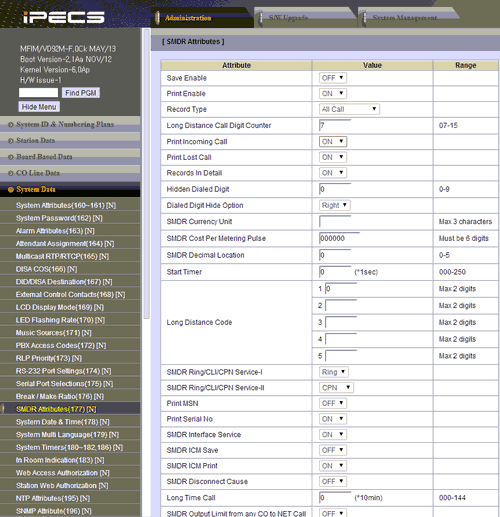

7. Change the SMDR attributes as shown below.

SMDR incoming record format

8. Do not forget to save all changes.

Configuring PBX Data Logger as a TCP client

Our software should work in the TCP client mode. It means that our software will initiate connection with the PBX and the PBX will work as a server. Add one or several PBX IP addresses here (the IP address of the (none)). The port number should match the port that you have defined within the PBX (5700 in the example below).

1. Add a new configuration with the TCP data source (if you didn't it before).

TCP/IP Data Interface

2. Configure the TCP settings as shown below.

TCP Client Mode - LG Ericsson IPECS

192.168.1.220

5700

192.168.1.220:5700

Selecting the correct parser for LG Ericsson IPECS MFIM50A

Parser Selection For LG Ericsson IPECS MFIM50A - SMDR/CDR call logging & accounting

LG Ericsson IPECS MFIM50A

LG Ericsson IPECS MFIM50A

Data items

DescriptionData typeColumn name
Call IDstringFLAG1
Caller namestringFLAG2
StationstringEXT
TrunkstringTRUNK
Call durationdatetimeCALL_DURATION
Call duration (s)integerCALL_DURATION_S
Call timedatetimeCALL_TIME
Call typestringCALL_TYPE
DirectionstringDIRECTION
PhonestringDIALED_PHONE
PhonestringCALLER_PHONE
RingdatetimeRING
CPN numberstringFLAG3
CostfloatCOST
Account codestringACC
