LG Aria Soho. SMDR/CDR data format and connection settings


This data is being extracted with help of the "Advanced PBX Data Logger" software only. It may not applicable for other software titles.

Configuring the PBX

1. Open the "LDK PCADMIN" utility and connect to your PBX.

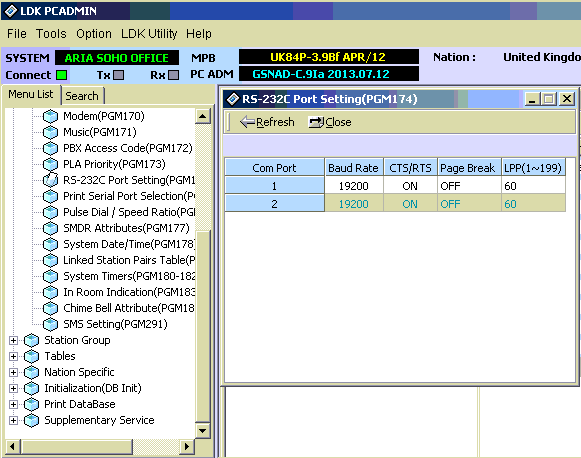

2. Switch to "Search" tab, type PGM174, open and change the RS232 port settings as shown below.

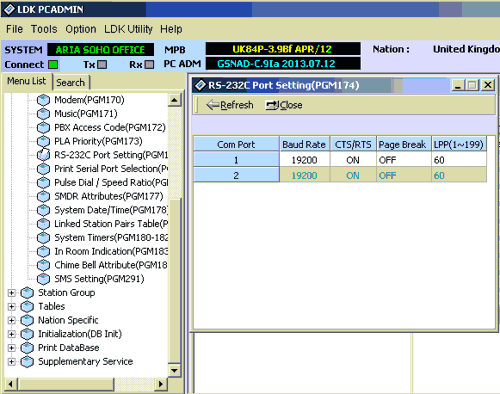

RS232 settings

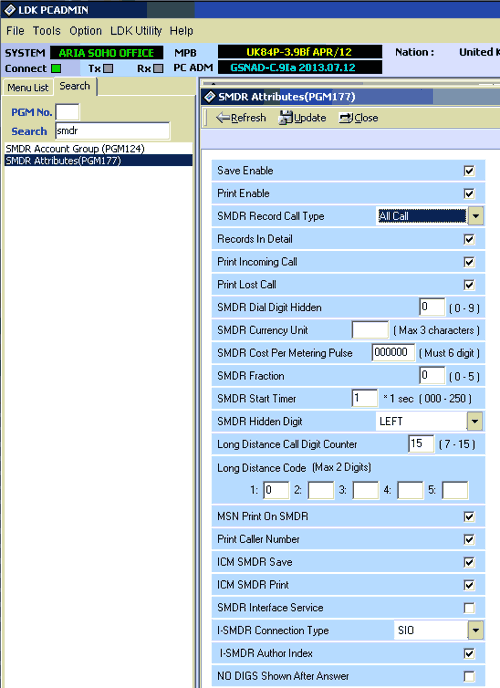

3. Switch to "Search" tab, type PGM177, open and change the SMDR settings as shown below.

SMDR settings

5. PGM142/16: (SMDR Print Enable) - enable SMDR for each line.
6. PGM141/5: (CO Line Type). Should be = CO. (If this parameter = PBX then you should define code in PGM172).
7. PGM175 (Info/On-line SMDR) - set to COM1 or TELNET1 (if LAN card exists)
8. Do not forget to save all changes.

Configuring a COM port

The COM port number should match the number in your system. You can check the correct port number in Devices Manager → Ports.

1. Add a new configuration with the RS232 data source (if you didn't it before).

RS232 Interface

2. Select the COM port and configure the communication settings for your PBX corresponding to your PBX settings.

RS232 or COM port settings for (none)
Port flow control settings (none)

Selecting the correct parser for LG Aria Soho

Parser Selection For LG Aria Soho - SMDR/CDR call logging & accounting

LG Aria Soho

LG Aria Soho

Data items

DescriptionData typeColumn name
StationstringEXT
COstringTRUNK
Call durationdatetimeCALL_DURATION
Call duration (s)integerCALL_DURATION_S
Call timedatetimeCALL_TIME
Call typestringCALL_TYPE
DirectionstringDIRECTION
PhonestringDIALED_PHONE
ActstringFLAG3
CountstringFLAG4
CostfloatCOST
Account codestringACC
