Panasonic KX-TEB308 (cost). SMDR/CDR data format and connection settings


This data is being extracted with help of the "Advanced PBX Data Logger" software only. It may not applicable for other software titles.

Printing Out SMDR Using LAN Port

Systems Affected: KX-TDE 100/200/600, and KX-NCP 500/1000

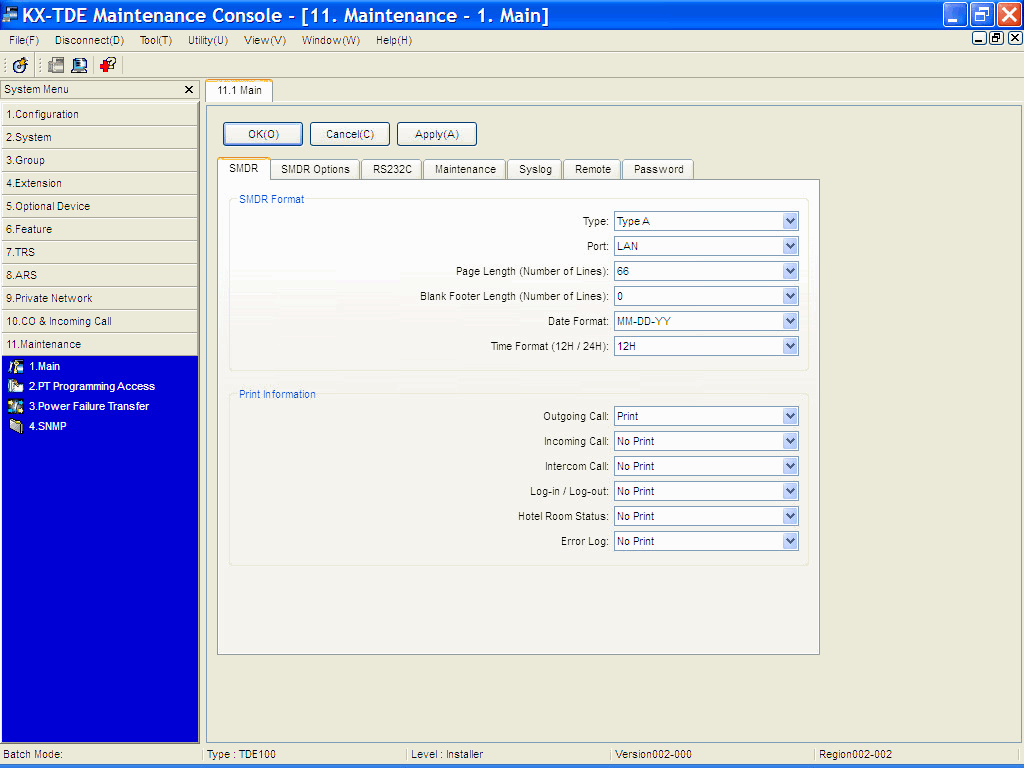

1. Go to 11.1 Maintenance → Main.
2. Set Port to LAN.
3. Under Print Information select which items you would like to display in the SMDR Printout.
3.1 Date format: MM-DD-YY.
3.2 Time format: 24H.

SMDR Settings

4. Click on SMDR Options tab.
5. Note the default SMDR Port Number and Password. (These can be changed at your own discretion, but for this document we will use the default settings.)

SMDR Options

Configuring PBX Data Logger as a TCP client

Our software should work in the TCP client mode. It means that our software will initiate connection with the PBX and the PBX will work as a server. Add one or several PBX IP addresses here (the IP address of the (none)). The port number should match the port that you have defined within the PBX (2300 in the example below).

1. Add a new configuration with the TCP data source (if you didn't it before).

TCP/IP Data Interface

2. Configure the TCP settings as shown below.

TCP Client Mode - Panasonic PBX

192.168.1.220

2300

192.168.1.220:2300

6. Configure our software to send password to the PBX.

By default, the Panasonic NCP/TDE system requires a username/password (default: SMDR/PCCSMDR) to connect to the TCP/IP feed.

You must activate the corresponding data query plugin, click the "Setup" button and specify the password:

Note: this feature is available in the Trial, Professional and Enterprise versions only.

Parser Setup for Panasonic PBX

Panasonic KX-TEB308 (cost)

Panasonic KX-TEB308 (cost)

Date Format and Password

Activating SMDR records for all calls

On the "SMDR options" page just enable condition codes to enable call logging for all stages "RC" and "AN". "RC" stands for received and "AN" for answered.

Data items

DescriptionData typeColumn name
Call timestringCALL_TIME
ExtensionstringEXT
COstringTRUNK
DirectionstringDIRECTION
Dialed numberstringDIALED_PHONE
CallerstringCALLER_PHONE
Call durationdatetimeCALL_DURATION
Call duration (s)integerCALL_DURATION_S
CostfloatCOST
AccountstringACC
