Panasonic KX-TD500 v3 (cost). SMDR/CDR data format and connection settings

This data is being extracted with help of the "Advanced PBX Data Logger" software only. It may not applicable for other software titles.

Pinout and wiring

PBX (25 pin male)	PC (9 pin female)	PC (25 pin female)
1	GND	1
2	2	3
3	3	2
6	4	20
7	5	7
20	6,7,8	5,6,8

RJ45 - Rear Serial Port B Adapter Pinout

RJ45 pin	Name	DB9 pin
1	RTS	7
2	DTR	4
3	TXD	3
4	GND	5
5	RI	9
6	RXD	2
7	DCD/DSR	1 or 6*
8	CTS	8

Configuring a COM port

The COM port number should match the number in your system. You can check the correct port number in Devices Manager → Ports.

1. Add a new configuration with the RS232 data source (if you didn't it before).

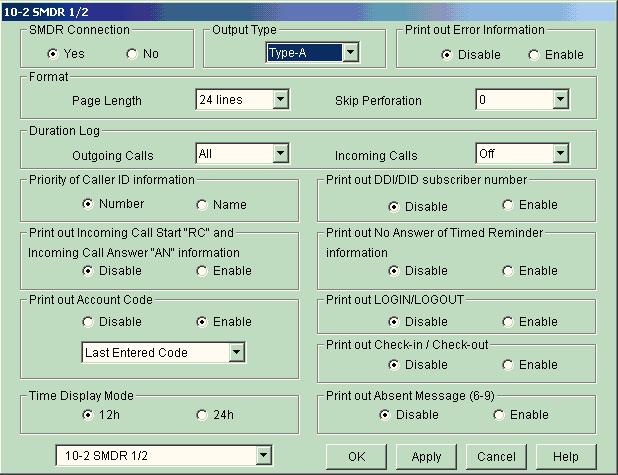

2. Select the COM port and configure the communication settings for your PBX corresponding to your PBX settings.

Selecting the correct parser for Panasonic KX-TD500 v3 (cost)

Data items

Description	Data type	Column name
Call date	datetime	CALL_DATE
Call time only	datetime	CALL_TIME2
Call date and time	datetime	CALL_TIME
Type	string	CALL_TYPE
Extension	string	EXT
CO	string	TRUNK
Direction	string	DIRECTION
Dialed number	string	DIALED_PHONE
Caller	string	CALLER_PHONE
Call duration	datetime	CALL_DURATION
Call duration (s)	integer	CALL_DURATION_S
Cost	float	COST
Account	string	ACC
CD	string	FLAG1

Interested in reports for PBX usage?

We offer the versatile PBX Reports utility, which comes with manual, scheduled, and email reports, a built-in web server, and other functionalities. You can implement your call accounting application for Panasonic KX-TD500 v3 (cost). Check our PBX Reports utility.

Want PBX call logs in a database?

The logger's standard feature includes the real-time capture and exportation of SMDR or CDR data to your database. Check our article about call logging to a database.
